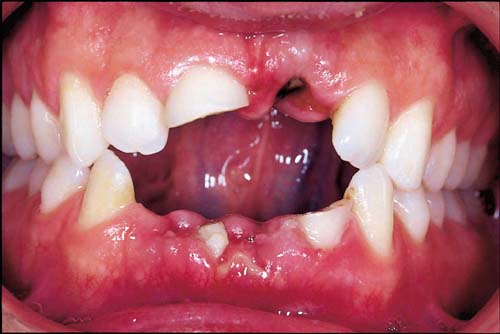

Figure 1

Figure 1: Clinical view 6 days after the trauma.































Figure 2

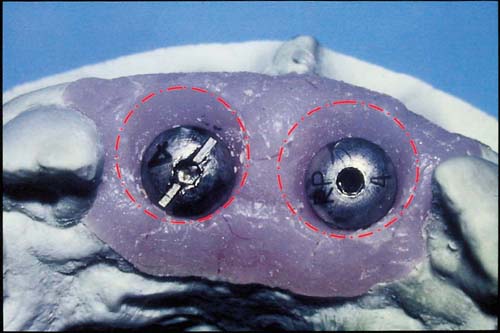

Figure 2: The implants are more than 4 mm below the gingival level. The gingival emergence profile is increased slightly on the master model. This facilitates the fabrication of temporary restorations with a more harmonious sub- to supra-gingival coronal transition and more suitable dimensions at the gingival 1/3 of crowns 11 and 21.































Figure 3

Figure 3: After minor gingivoplasty, temporary restorations 11 and 21 are fixed to the implants. They maintain the emergence profile and guide the gingival healing. A porcelain-fused-to-metal restoration 32-X-X-42 is fixed to the implants (Laboratoire dentaire Artech).































Figure 4

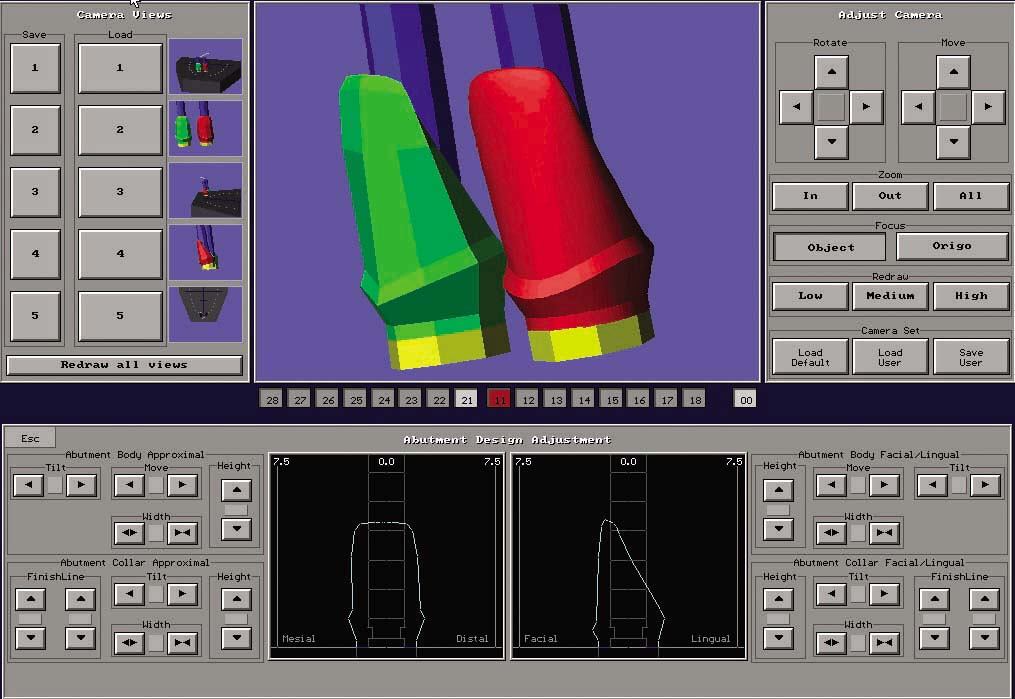

Figure 4: The final shape of abutments 11 and 21 is produced using a Procera CAD 3D program. Each abutment is designed and adjusted labially and interproximally (photo: Mr. Gunnar Bagge, Nobel Biocare, North York, Ontario).































Figure 5

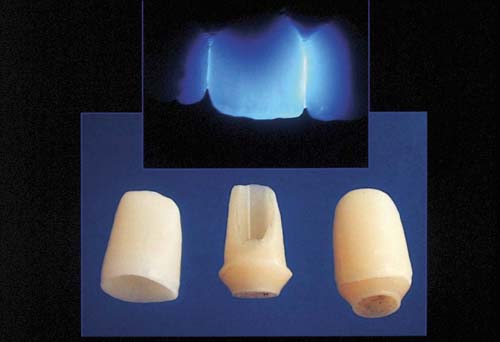

Figure 5: Procera aluminum oxide ceramic abutments and crown copings (Mr. Paul Hutnik, Quantum Dental Laboratory). The joint use of a ceramic abutment and a ceramic crown improve light transmission.































Figure 6

Figure 6: Ceramic abutments. The shoulder of the abutment is 1 to 2 mm below the gingival level.































Figure 7

Figure 7: Tightening of the abutment screw at 32 Ncm with counter-torque.































Figure 8

Figure 8: Procera crowns cemented with an adhesive composite resin cement (porcelain: Mr. Roger Picard, dental technician).

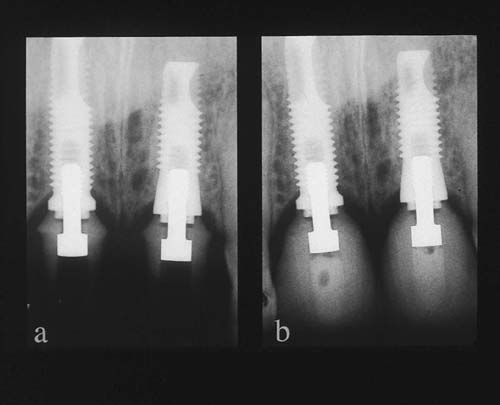

Figure 9

Figure 9: Periapical radiographs: a) 11 and 21: implants/posts, b) 11 and 21: implants/abutments ceramic crowns cemented.

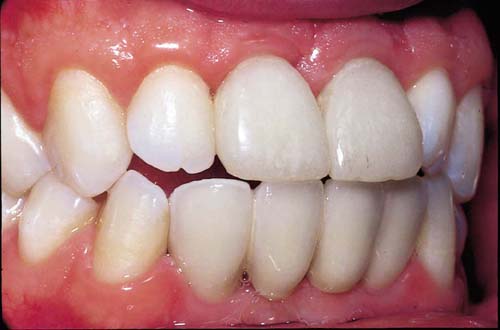

Figure 10

Figure 10: Clinical view 4 years after the trauma to the anterior teeth.































Figure 11

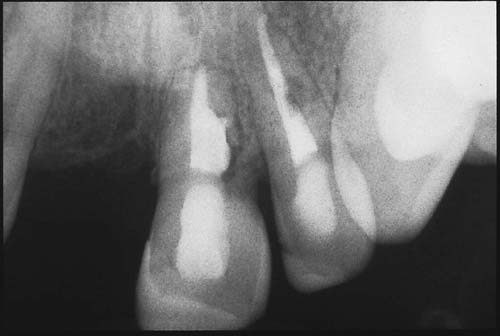

Figure 11: Root resorption at the level of teeth 21 and 22.

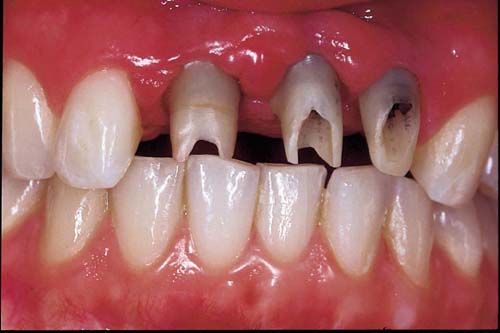

Figure 12

Figure 12: Aluminum oxide ceramic abutments fixed onto the implants. The shoulder of abutment 21 is at gingival level.

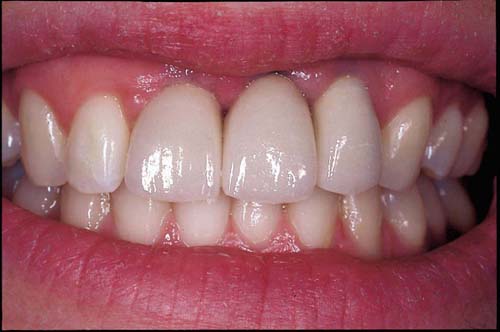

Figure 13

Figure 13: Procera ceramic crowns cemented (abutments and copings: Mr. Paul Hutnik; porcelain: Laboratoire dentaire Denta-Design).

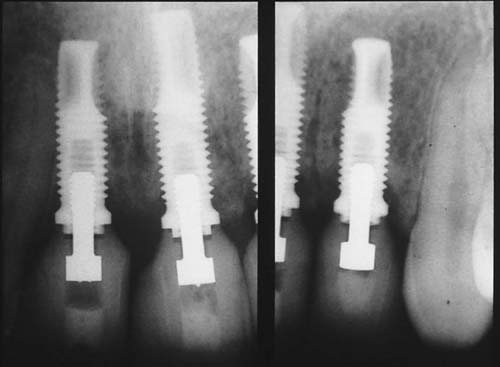

Figure 14

Figure 14: Periapical radiographs: Implants 11, 21, 22, screw-retained ceramic abutments (32 Ncm), Procera ceramic crowns.
